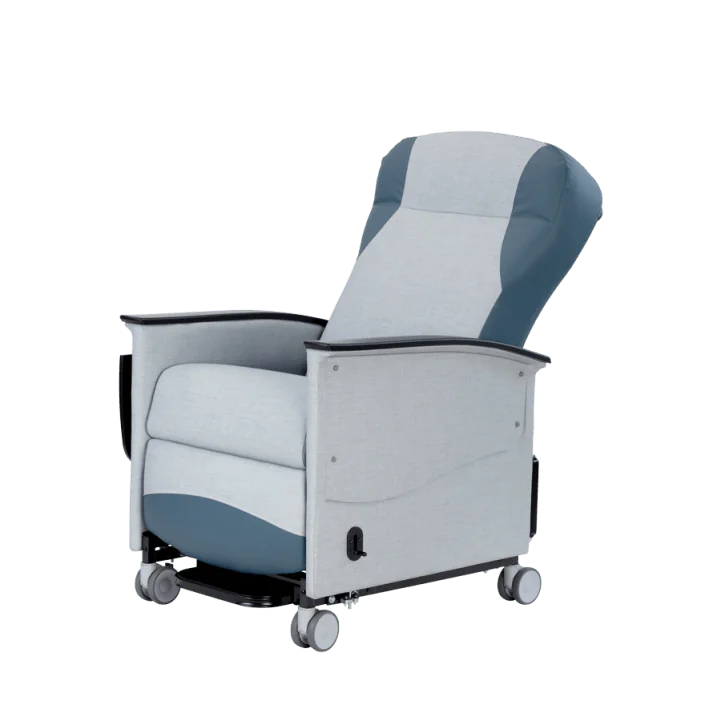

Alō Treatment

Available in Power, Manual, Power XL, Manual XL,

Curated to provide the highest quality of care and aesthetics, the Alō Treatment is our flagship offering for medical seating in Infusion and Oncology areas.

Request a Quote

Curated to provide the highest quality of care and aesthetics, the Alō Treatment is our flagship offering for medical seating in Infusion and Oncology areas.

Request a Quote
Product Specs (Treatment Specs)
Model Numbers
Straight Back Wing Back
Model Number Model: 61P Model: 63P



Measurements
A B
Back Height (from floor/seat) 47″/29″ 49″/31″

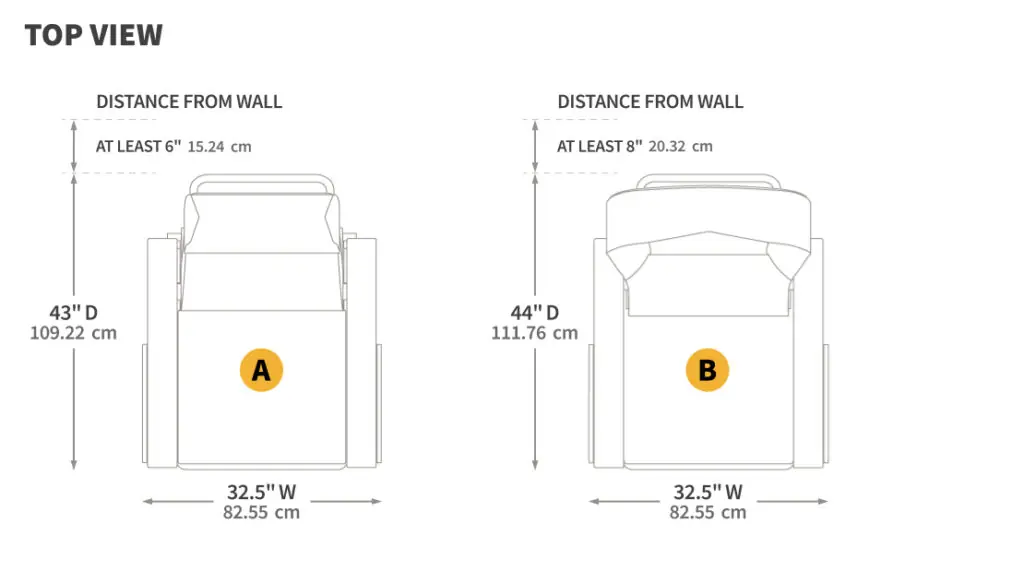

Overall Width – measured with both arms closed 32.5″ 32.5″
Seat Width 23″ 23″
Arm Height (from floor, highest point) 29″ 29″
Seat Height/Depth 24.5″/20.5″ 24.5″/20.5″

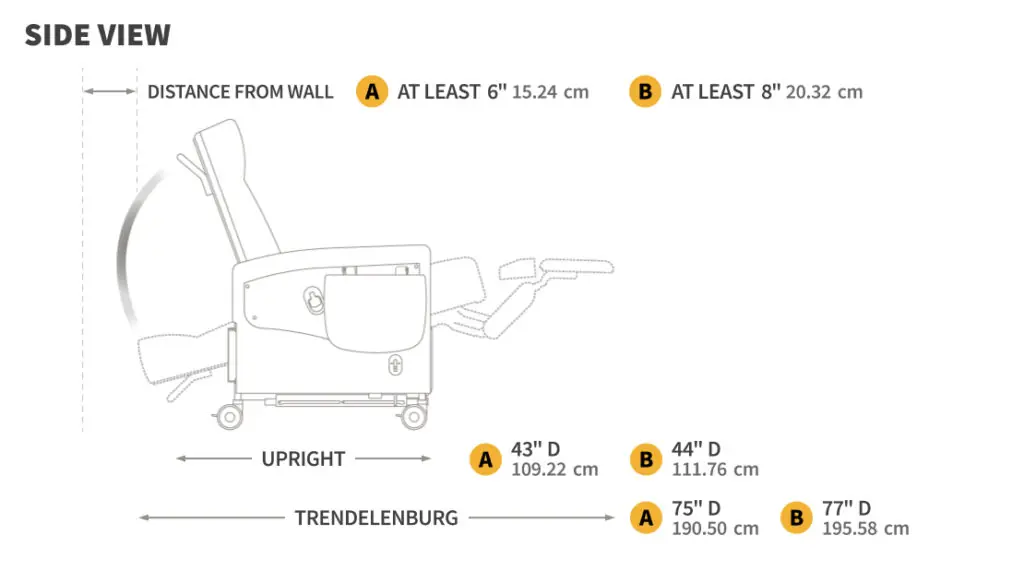

Overall Upright Depth (with handle) 43″ 44″
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.
  • Powered & Manual Recline

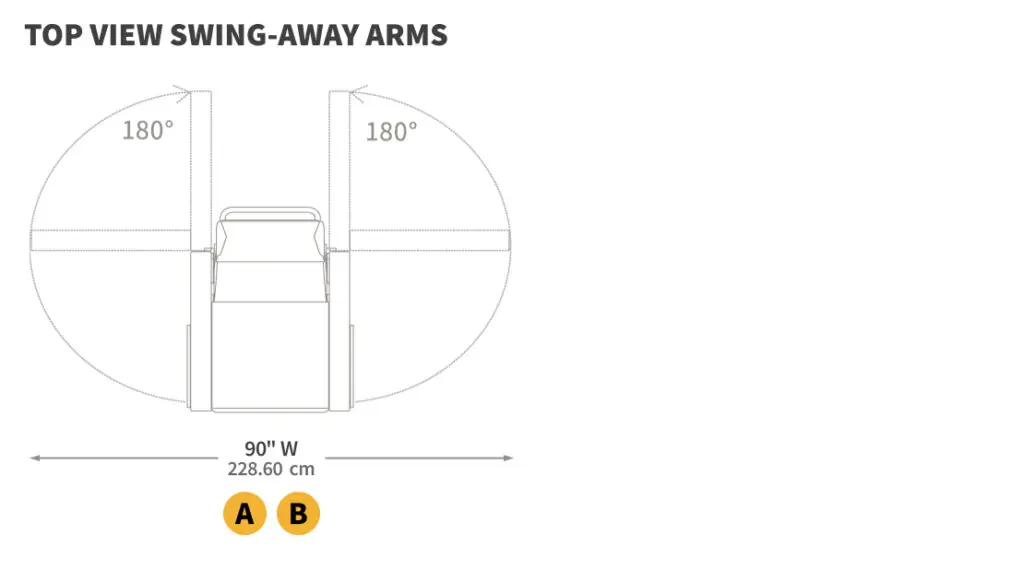

  • Swing-Away Arms
  • 4" Dual Thermoplastic Casters
  • Standard and XL Weight Capacity Sizes
  • Heat + Massage
  • *Available features may not come standard on base model. For additional information, please contact your local sales representative or click the “Contact a Rep” button at the top of the page.

REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection
Model Numbers
Straight Back Wing Back
Model Number Model: 610 No



Measurements
A B
Back Height (from floor/seat) 47″/29″ 49″/31″
Overall Width – measured with both arms closed 32.5″ 32.5″
Seat Width 23″ 23″
Arm Height (from floor, highest point) 29″ 29″
Seat Height/Depth 24.5″/20.5″ 24.5″/20.5″
Overall Upright Depth (with handle) 43″ 44″
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.
  • Powered & Manual Recline
  • Swing-Away Arms
  • 4" Dual Thermoplastic Casters
  • Standard and XL Weight Capacity Sizes
  • Heat + Massage
  • *Available features may not come standard on base model. For additional information, please contact your local sales representative or click the “Contact a Rep” button at the top of the page.

REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection
Model Numbers
Straight Back Wing Back
Model Number Model: 62P Model: 64P



Measurements
A B

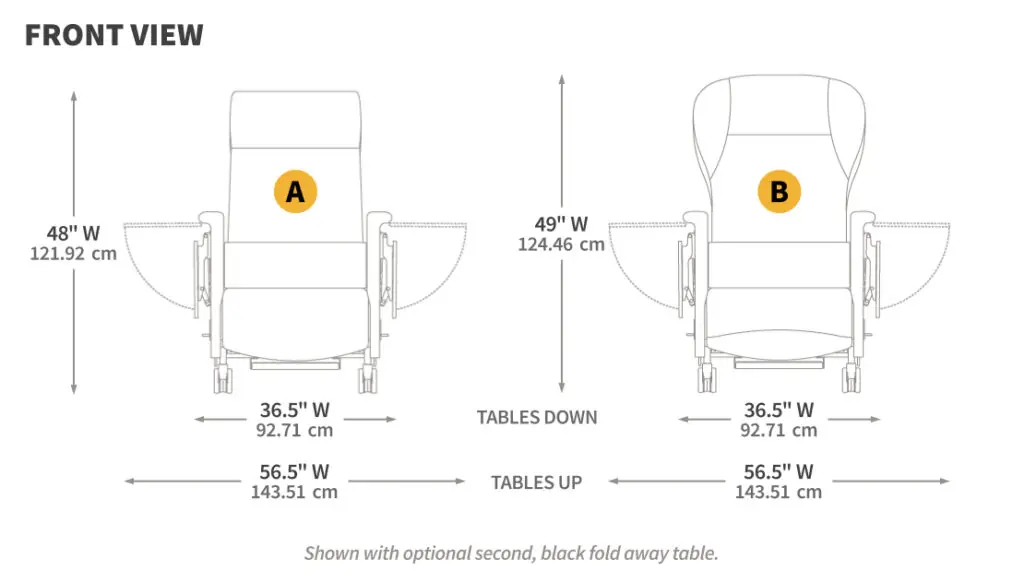

Back Height (from floor/seat) 48″/30″ 49″/31″
Overall Width – measured with both arms closed 36.5″ 36.5″
Seat Width 27″ 27″
Arm Height (from floor, highest point) 29″ 29″
Seat Height/Depth 24.5″/20.5″ 24.5″/20.5″
Overall Upright Depth (with handle) 43″ 44″
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 500 lbs. 500 lbs.
  • Powered & Manual Recline
  • Swing-Away Arms
  • 4" Dual Thermoplastic Casters
  • Standard and XL Weight Capacity Sizes
  • Heat + Massage
  • *Available features may not come standard on base model. For additional information, please contact your local sales representative or click the “Contact a Rep” button at the top of the page.

REQUEST A QUOTE DOWNLOAD SPEC SHEET

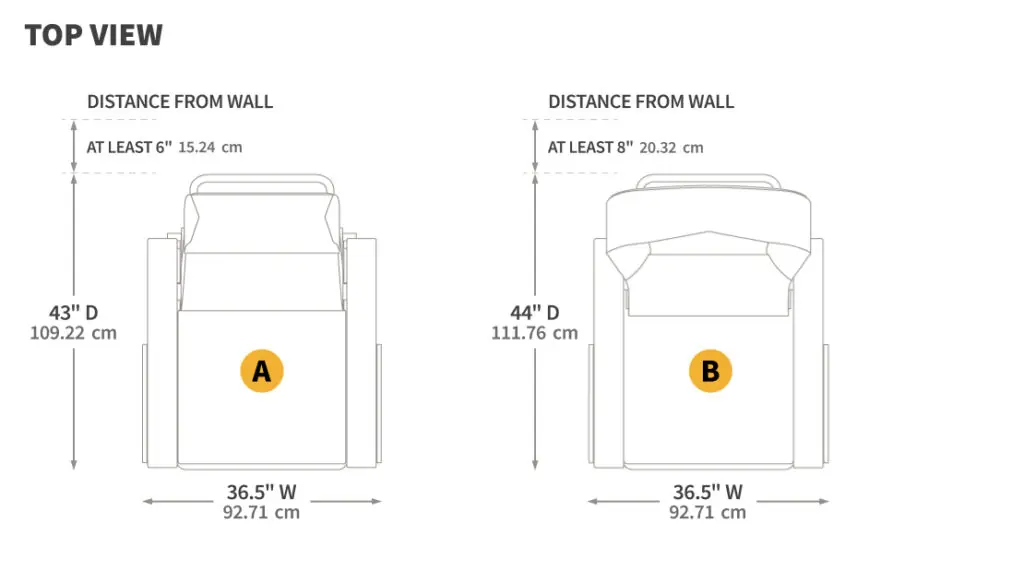

A - Straight Back Style Selection | B - Wingback Style Selection
Model Numbers
Straight Back Wing Back
Model Number Model: 620 No



Measurements
A B
Back Height (from floor/seat) 48″/30″ 49″/31″
Overall Width – measured with both arms closed 36.5″ 36.5″
Seat Width 27″ 27″
Arm Height (from floor, highest point) 29″ 29″
Seat Height/Depth 24.5″/20.5″ 24.5″/20.5″
Overall Upright Depth (with handle) 43″ 44″
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 500 lbs. 500 lbs.
  • Powered & Manual Recline
  • Swing-Away Arms
  • 4" Dual Thermoplastic Casters
  • Standard and XL Weight Capacity Sizes
  • Heat + Massage
  • *Available features may not come standard on base model. For additional information, please contact your local sales representative or click the “Contact a Rep” button at the top of the page.

REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection

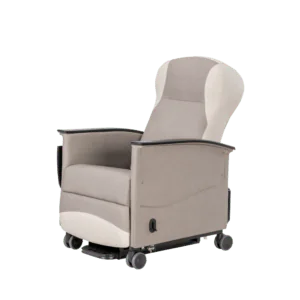

Product Specs (Recovery Height)
A B
Back Height (from floor/seat) 47″/29″ 49″/31″
Overall Width – measured with both arms closed 32.25˝ 32.25”
Seat Width 22.75˝ 22.75˝
Arm Height (from floor, highest point) 29″ 29˝
Seat Height/Depth 24.5˝/20.5˝ 24.5˝/20.5˝
Upright Overall Depth (with handle) 43˝ 44”
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.



  • Curated Styles:
    • Back style A (straight) or B (wing back)
    • Choice of vanity panel style
      • Clean and simple
      • Emboss (Diamond and Wave patterns available)
        • Emboss available on standard vinyl selections Pearl, Milieu, Dolphin and Stone.
        • For additional emboss covering selections, contact Champion.
      • Two-tone (upgrade)
    • Choice of side table style
      • One black fold-away table
      • One black pivot table
    • Tuxedo style (upgrade, only available on back style B)
  • Covering Upgrades:
    • Silicone and Polyurethane – Greenguard Certified
    • PVC-free material
    • Graded vinyl selections
    • Customer’s own material
    • Woven fabrics (for two-toned vanity panel style only)
  • Heat + massage
  • Heat
  • USB charging port
    • Available on the right side only
  • Central-locking casters
  • Black arm caps (included with Tuxedo style)
  • Dual-hand control (Power only)
REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection
A B
Back Height (from floor/seats) 47″/29″ 49″/31″
Overall Width – measured with both arms closed 32.25˝ 32.25”
Seat Width 22.75˝ 22.75˝
Arm Height (from floor, highest point) 29˝ 29˝
Seat Height/Depth 24.5˝/20.5˝ 24.5˝/20.5˝
Upright Overall Depth (with handle) 43˝ 44”
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.



  • Curated Styles:
    • Back style A (straight) or B (wing back)
    • Choice of vanity panel style
      • Clean and simple
      • Emboss (Diamond and Wave patterns available)
        • Emboss available on standard vinyl selections Pearl, Milieu, Dolphin and Stone.
        • For additional emboss covering selections, contact Champion.
      • Two-tone (upgrade)
    • Choice of side table style
      • One black fold-away table
      • One black pivot table
    • Tuxedo style (upgrade, only available on back style B)
  • Covering Upgrades:
    • Silicone and Polyurethane – Greenguard Certified
    • PVC-free material
    • Graded vinyl selections
    • Customer’s own material
    • Woven fabrics (for two-toned vanity panel style only)
  • Heat + massage
  • Heat
  • USB charging port
    • Available on the right side only
  • Central-locking casters
  • Black arm caps (included with Tuxedo style)
REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection
A B
Back Height (from floor/seat) 47″/29″ 49″/31″
Overall Width – measured with both arms closed 32.25˝ 32.25”
Seat Width 22.75˝ 22.75˝
Arm Height (from floor, highest point) 29˝ 29˝
Seat Height/Depth 24.5˝/20.5˝ 24.5˝/20.5˝
Upright Overall Depth (with handle) 43˝ 44”
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.



  • Curated Styles:
    • Back style A (straight) or B (wing back)
    • Choice of vanity panel style
      • Clean and simple
      • Emboss (Diamond and Wave patterns available)
        • Emboss available on standard vinyl selections Pearl, Milieu, Dolphin and Stone.
        • For additional emboss covering selections, contact Champion.
      • Two-tone (upgrade)
    • Choice of side table style
      • One black fold-away table
      • One black pivot table
    • Tuxedo style (upgrade, only available on back style B)
  • Covering Upgrades:
    • Silicone and Polyurethane – Greenguard Certified
    • PVC-free material
    • Graded vinyl selections
    • Customer’s own material
    • Woven fabrics (for two-toned vanity panel style only)
  • Heat + massage
  • Heat
  • USB charging port
    • Available on the right side only
  • Central-locking casters
  • Black arm caps (included with Tuxedo style)
REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection
A B
Back Height (from floor/seat) 47″/29″ 49″/31″
Overall Width – measured with both arms closed 32.25˝ 32.25”
Seat Width 22.75˝ 22.75˝
Arm Height (from floor, highest point) 29˝ 29˝
Seat Height/Depth 24.5˝/20.5˝ 24.5˝/20.5˝
Upright Overall Depth (with handle) 43˝ 44”
Dual Thermoplastic Casters (diameter) 4″ 4″
Weight Capacity 300 lbs. 300 lbs.



REQUEST A QUOTE DOWNLOAD SPEC SHEET
A - Straight Back Style Selection | B - Wingback Style Selection

The Champion Experience

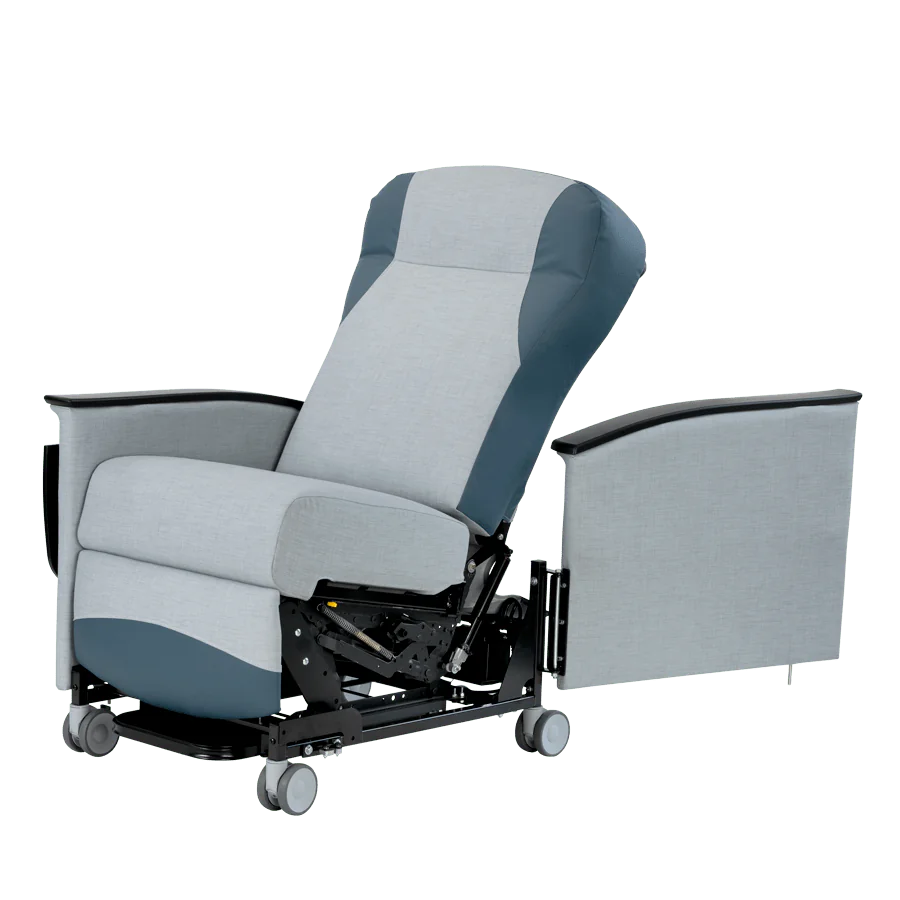

Infinite recline positions and either stationary or swing-away arms provide optimal patient comfort and better access for caregivers.

Designed for Better Comfort and Access

Infinite recline positions and either stationary or swing-away arms provide optimal patient comfort and better access for caregivers.

With fold-away tables, foot trays and quick-release seats, caregivers get more versatility and convenience from a Champion recliner.

Added Convenience

With fold-away tables, foot trays and quick-release seats, caregivers get more versatility and convenience from a Champion recliner.

THE ALŌ is commonly used in the following clinical environments
Check mark
Infusion & Oncology
